PhytoMAX-4 20S LED Grow Light
Free shipping to the contiguous US states and much of Canada!
Go BEYOND PAR with our Phyto-Genesis Spectrum®
The Phyto-Genesis Spectrum has been finely-tuned to not just grow plants, but to grow more-compact, more-productive and higher-quality flowers, fruit and leaves. Unlike most LED grow lights that use white or white and red LEDs, we incorporate 8 different LED colors to target specific responses from the plants, known as photomorphogenesis.
Our spectrum triggers plants' hormonal response to different colors of light and the ratio of these colors to minimize stem growth while maximizing flower and fruit production. Compact, bushier plants are not only easier to work with but also maximize yield per square foot.
3% ultraviolet light (<400nm) mimics the sun's natural UV light, keeping plants bushier and more compact, more resistant to pathogens and insects, and producing more terpenes and pigments.
Unlike supplemental UV light bars, PhytoMAX-4 evenly distributes UV light across the entire growing area, and at a concentration that gives your plants the benefits of ultraviolet throughout the entire growing cycle, not just restricted to the last couple weeks of flower.
Infrared / Far Red
Infrared / far red light (700-750nm) increases photosynthetic efficiency through the Emerson Effect. Too much can cause stem elongation but when paired with the right ratio of red and blue light as in the Phyto-Genesis Spectrum, it increases yields.
Violet light (400-450nm) better penetrates dense plant canopies to nourish lower leaves, allowing high-quality flowers and fruit to grow lower on the plant.
Blue light (450-480nm) triggers chlorophyll B photosynthesis more efficiently than green or yellow light, and helps keep leaves more compact for better canopy penetration.
Red light (600-700nm) drives photosynthesis, but can also cause plants to elongate their stems if not matched with an appropriate amount of blue light.
Unparalleled Yield and Quality
PhytoMAX-4 lights are designed to grow the highest-quality and highest-quantity harvests. Rather than striving for the highest-possible photons per watt, PhytoMAX-4 is designed to give the highest yield per watt while maximizing terpenes, pigments and cannibinoid production.
Black Dog has been perfecting grow lights and supporting our customers since 2010- we're among the oldest LED grow light manufacturers still in existence.
We've grown thousands of different kinds of plants with our lights ourselves, and our customer support is second-to-none, ranging from lighting questions to garden issues. If you're growing 4 plants or 40,000 we've got the experience to help.
Dimmable from 15% - 100% with industry-standard 0-10V dimming controllers.

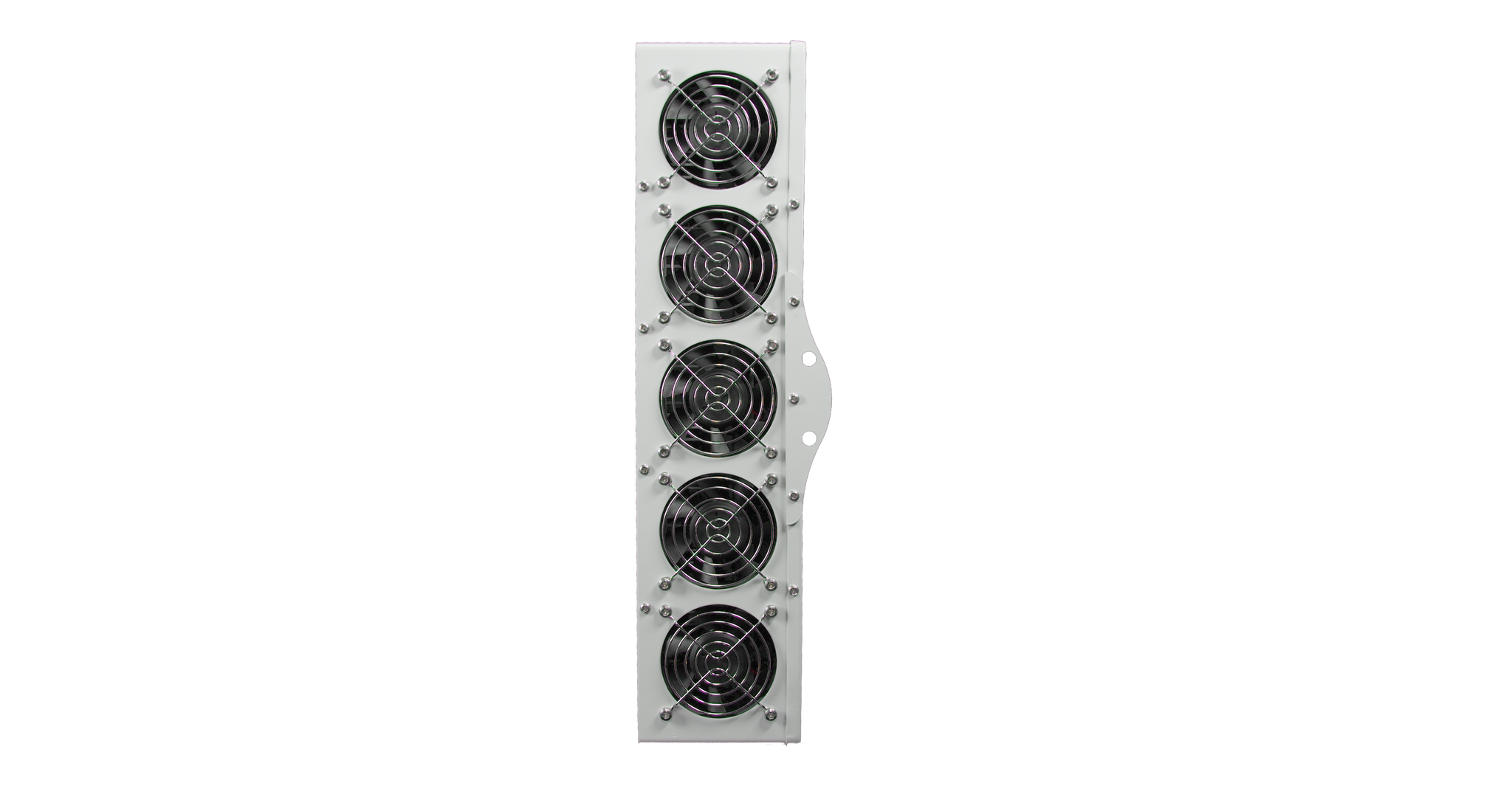

PhytoMAX-4 increases efficiency and maximizes lifespan by actively cooling the LEDs. Cooler LEDs run more efficiently and have a longer lifespan, especially for the specialty UV and violet LEDs we use. While fans are a moving part, we've never had one fail in tens of thousands of lights over the past 13 years, plus our patented design includes multiple redundant fans. Even if one were to fail, your light will keep running just fine.
Designed and Assembled in Colorado
We utilize only the highest-quality parts and have been perfecting the PhytoMAX design for over 8 years- these lights are built to last!
Hanging Hardware Included
A pair of V-hooks and ratcheting rope hangers are included with every light.
SP versus SC Models
The only difference between the SP and SC models is the power cord and the voltage it can handle.
|SP model IEC power cord:||SC model locking, water-tight power cord:|
PhytoMAX-4 20S Specifications
|Photon Flux (μmol/s)|
|Dimensions||19" x 19" x 4.5"48 x 48 x 11 cm|
|Certifications||UL 1598, UL 8800, ETL, CE, FCC, RoHS|
|Mean Time Before Failure||> 70,000 hours|
|Number of LEDs||560|
12.5 @ 100V|
10.42 @ 120V
6.01 @ 208V
5.43 @ 230V
5.21 @ 240V
4.51 @ 277V (SC model only)
3.6 @ 347V (SX model only)
|Included Power Cord Length||8 ft2.4 meters|
|Power Cord Options||NEMA 5-15, NEMA 6-15, NEMA 7-15 (SC model only), Pigtails|
|AC Voltage Range||SP Model: 100-250V (50 / 60 Hz)|
SC Model: 100-277V (50 / 60 Hz)
SX Model (special order): 347V
|Operation Ambient Temperature Range||-4 to 104 °F-20 to 40 °C|
|Fans Expected Life||> 70,000 hours|
PhytoMAX-4 20S PBFD / PPFD / DLI Coverage
Please specify the coverage footprint area to calculate light intensity levels:
|Recommended hanging height above the average top of the plant canopy:|
|Total area covered: 2|
|Average over this entire area for running hours per day:
(calculations assume reasonably-reflective walls around the footprint and/or adjacent lights on identical footprints)
Custom Light Plans
We have custom, proprietary light modeling software that can show you guaranteed light intensity levels every square inch of your growing area, or even cubic inch from top to bottom. We also hacve the experience and expertise to recommed the4 right lighting for your needs, no matter what you're growing. Contact us through email or phone or schedule a large-project consultation.
A sample light map showing every cubic inch of a 10 by 10 foot room with 4 PhytoMAX-4 16S lights:
